TD4 Forensic Duplicator

SUMMARY

The new Tableau TD4 Forensic Duplicator delivers the high-performance imaging that examiners need — along with a intuitive and informative touch-screen user interface. The TD4 packs an extensive list of features in a compact form-factor.

Partial list of TD4 key features:

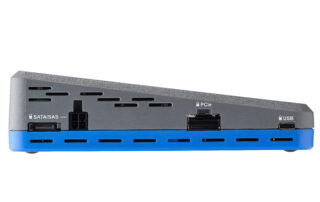

Three write-blocked source ports: SATA/SAS, PCIe, and USB 3.2 (Type-C)

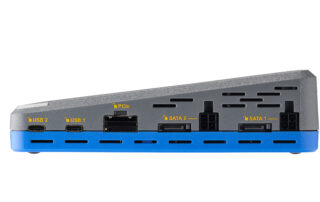

Five destination ports: SATA (x2), PCIe, and USB 3.2 (Type-C, x2)
One USB (Type-C) accessory port

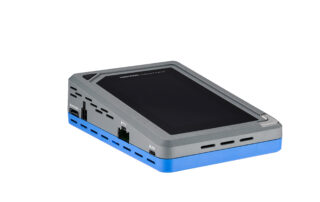

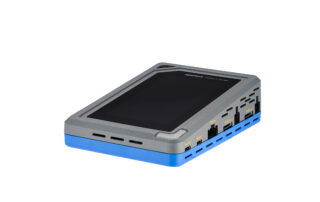

Color, touch-screen LCD
SATA/SAS, USB, IDE, FireWire, m.2/NVMe forensic imaging support
Hot-swap PCIe source and destination devices
Single device imaging, output to up to five (5) destination devices
Audible and visual job status feedback
Administrative options to set features by user
Disk-to-disk (clone), disk-to-file (imaging), and logical device imaging
MD5, SHA-1, and SHA-256 hashing
Detailed job logs for view, print, and export
Encryption detection with key unlock
Secure output using AES-256 encryption
Multi-file system detection and browsing
Drive verification
Drive restore
AMA/HPA/DCO detection and hidden partition removal or unlock
36 months manufacturer warranty

The TD4 duplicator is compatible with all existing Tableau and Digital Intelligence drive adapters.

Physical / Environmental
TD4 input power
Single barrel connector for use with TP6 power supply
DC Output (per drive)
+5/12V @ 1A (continuous)
+5/12V@2A (drive spin-up)
DC Input
24 VDC (nominal)
13 VDC (min) to 34 VDC (max)
Dimensions: 6.75 in. (L) x 4.6 in. (W) x 1.8 in. (H)
Operating Temperature: 0 to 40 degrees celcius ambient (room temp)
Power: 18 watts not including drive power
Relative Humidity: Up to 90% non-condensing
Weight: 16 oz (450 g)
