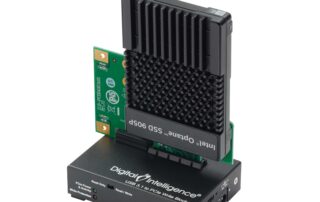

Digital Intelligence USB 3.1 – PCIe SSD Write Blocker Kit

The Digital Intelligence USB 3.1 – PCIe write blocker kit is used to create forensically sound images of PCIe connected NVMe M.2 and U.2 SSD storage drives. This imaging device is sold as a kit only and includes all components necessary to quickly and efficiently image M.2 and U.2 SSD’s. Requires third party forensic imaging software for operation.

This device is user switchable from write blocked (read-only) to general purpose (read-write) for non-forensic applications. LEDs provide quick status during device operation.

Connects to host system computers using USB 3.1 technology for fast, convenient operation.

Kit includes quickstart guide for operational reference.

The USB 3.1 – PCIe Write Blocker Kit includes:

USB 3.1 to PCIe write blocker

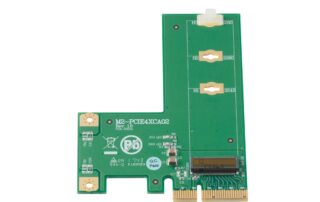

M.2/NVMe to PCIe SSD drive adapter

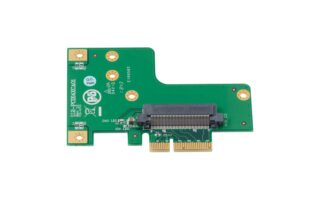

U.2 to PCIe SSD drive adapter
USB 3.1 gen 2 type A to type C cable
USB 3.1 gen 2 type C to type C cable
Power supply with US-style line power cord
Quickstart guide

Product USB 3.1 to PCIe SSD Write Blocker
Host USB 3.1 gen 2 type C
Input Power Bayonnet style, 12V DC
Adapters M.2/NVMe PCIe SSD
Switches Read only / read write, enables or disables write blocking
PCIe Power & Activity Steady green indicates power and USB connected, device ready

Flashing green indicates active data transfer in progress

Write Protection Steady red indicates write blocking enabled

Operating System Compatible with Windows 10 Professional, 64-bit
Physical Environment
Supply Voltage +12 VDC@5A
Write blocker 3.625″ L x 2.4375″ D x .8125″ H
Write blocker kit 13.0″ L x 9.75″ D x 3.1875″H
Write blocker 5.7 oz (170 gm)
Write blocker kit 2 lbs 11 oz (1220 gm)

Operating temperature 0 to 55 degrees C (no airflow)
Storage temperature -40 to 70 degrees C
Relative humidity up to 90% (non condensing)
