Tableau Forensic SATA/IDE Bridge T35u

SUMMARY

The Tableau Forensic SATA/IDE Bridge is a portable write-blocker that enables forensic acquisition of SATA and IDE solid-state-drives.

A second-generation Tableau product, replacing the Tableau T35es.

FEATURES

Suitable for both the field and lab

USB 3.0 host computer connection

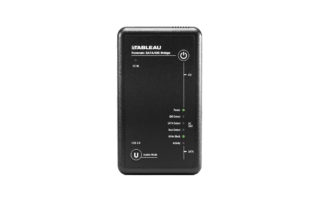

Integrated, backlit LCD presents useful bridge and SATA/IDE device information

Seven LEDs provide status on power, IDE media detection, SATA media detection, host connection, write-block status, and activity

Read/write mode capability via internal DIP switch

Free Tableau firmware updates

NOTE: The Tableau Forensic SATA/IDE Read-Write Bridge [T35u-RW] is the T35u pre-configured for read-write operation.

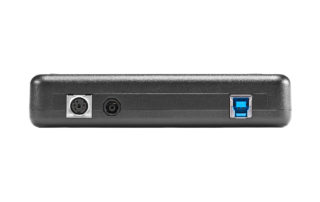

Connectors: Host (Left) Side
USB 3.0 One USB 3.0 Standard-B connector
DC Input One 5-pin mini-DIN connector for use with the Tableau TP2 power supply, and one bayonet connector for use with the Tableau TP5 power supply
Connectors: Device (Right) Side
SATA SATA signal connector
IDE IDE signal connector
DC Out 4-pin 3M drive power connector (power to SATA or IDE hard disk)
Switches
DIP Switch The 4-position DIP switch configures user-selectable options that are not required for normal operation. See the T35u/T35u-RW Quick Reference Guide for more information
Other Features
Status LEDs Seven LEDs: DC IN, Power, IDE Detect, SATA Detect, Host Detect, Write Block, Activity
Factory Configuration Black-case units are pre-configured as read-only (T35u)
Yellow-case units are pre-configured as read-write (T35u-RW)
Compatibility
SATA Device SATA 1 or SATA 2 hard disk devices
IDE Device Parallel ATA hard disk devices with Logical Block Addressing (LBA) support
Host Interface USB 3.0 (backward compatible with USB high/full/low speed)
Host OS Microsoft Windows version 7, 8, 10
Macintosh OS X
Most modern Linux distributions (Note: Linux distributions have varying levels and quality of support for USB 3.0)
Physical / Environmental
Power 5-6 watts typical operating (not including hard disk)
Supply Voltage (DC IN) +5VDC @ 2A, +12VDC @ 2A (includes budget for hard disk)
Output Voltage (DC OUT) +5VDC @ 1A, + 12VDC @ 1A
Dimensions 5.625 in. (L) x 3.25 in. (W) x 1.125 in. (H)
Weight 5.9oz (168g)
Operating Temperature Range 0 to 55 degrees C (no airflow)
Storage Temperature Range -40 to 70 degrees C
Relative Humidity Up to 90% (non-condensing)
Warranty
One year parts and workmanship from date of purchase
