Tableau Forensic SATA/IDE Read-Write Bridge T35u-RW

SUMMARY

The Tableau Forensic SATA/IDE Bridge is portable write-blocker identical to the Tableau T35u, except that it is pre-configured for read/write operation.

A second-generation Tableau product, replacing the Tableau T35es-RW

FEATURES

Suitable for both the field and lab

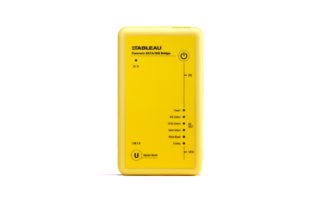

Yellow-case distinguishes the device as pre-configured for read/write operation

USB 3.0 host computer connection

Integrated, backlit LCD presents useful bridge and SATA/IDE device information

Seven LEDs provide status on power, IDE media detection, SATA media detection, host connection, write-block status, and activity

Free Tableau firmware updates


NOTE:
 All Tableau Forensic Bridge can switch between a write-blocked or read/write device by adjusting the DIP switch settings. However, once the breakaway plastic has been removed, that device then needs to be validated before each use to ensure the proper configuration of the device was selected. At the request of forensic examiners, Tableau created yellow-cased bridges dedicated to read/write operation as a way ensure read/write operation to help eliminate the potential for misuse during forensic investigations. Often, a full forensics kit will include both write-blocked and read/write forensic bridges, and you will see that many Tableau resellers sell kits configured in just this way.

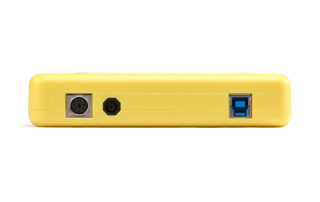

Connectors: Host (Left) Side
USB 3.0 One USB 3.0 Standard-B connector
DC Input One 5-pin mini-DIN connector for use with the Tableau TP2 power supply, and one bayonet connector for use with the Tableau TP5 power supply

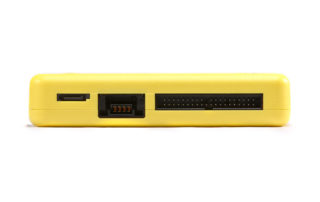

Connectors: Device (Right) Side
SATA SATA signal connector
IDE IDE signal connector
DC Out 4-pin 3M drive power connector (power to SATA or IDE hard disk)
Switches
DIP Switch The 4-position DIP switch configures user-selectable options that are not required for normal operation. See the T35u/T35u-RW Quick Reference Guide for more information
Other Features
Status LEDs Seven LEDs: DC IN, Power, IDE Detect, SATA Detect, Host Detect, Write Block, Activity
Factory Configuration Black-case units are pre-configured as read-only (T35u)
Yellow-case units are pre-configured as read-write (T35u-RW)
Compatibility
SATA Device SATA 1 or SATA 2 hard disk devices
IDE Device Parallel ATA hard disk devices with Logical Block Addressing (LBA) support
Host Interface USB 3.0 (backward compatible with USB high/full/low speed)
Host OS Microsoft Windows version 7, 8, 10
Macintosh OS X
Most modern Linux distributions (Note: Linux distributions have varying levels and quality of support for USB 3.0)
Physical / Environmental
Power 5-6 watts typical operating (not including hard disk)
Supply Voltage (DC IN) +5VDC @ 2A, +12VDC @ 2A (includes budget for hard disk)
Output Voltage (DC OUT) +5VDC @ 1A, + 12VDC @ 1A
Dimensions 5.625 in. (L) x 3.25 in. (W) x 1.125 in. (H)
Weight 5.9oz (168g)
Operating Temperature Range 0 to 55 degrees C (no airflow)
Storage Temperature Range -40 to 70 degrees C
Relative Humidity Up to 90% (non-condensing)
Warranty
One year parts and workmanship from date of purchase
