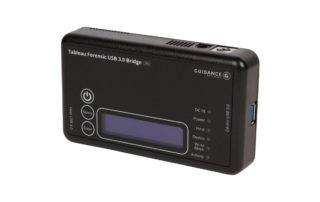

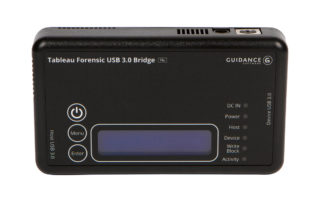

Tableau Forensic USB 3.0 Bridge T8u

SUMMARY

The Tableau Forensic USB 3.0 Bridge is a portable write-blocker that enables forensic acquisition of USB 3.0 devices.

A second-generation Tableau product, replacing the Tableau T8-R2.

FEATURES

Suitable for both the field and lab

Imaging speeds up to 340 MB/second

USB 3.0 host computer connection

Integrated, backlit LCD presents useful bridge and USB device information

Six LEDs provide status on power, host connection, USB device detection, write-block status, and activity

Read/write mode capability via internal DIP switch

Free Tableau firmware updates

Connectors: Host (Left) Side
USB 3.0 One USB 3.0 Standard-B connector
Connectors: Device (Right) Side
USB 3.0 One USB 3.0 Standard-A connector
Connectors: Top Side
DC Input One 5-pin Mini-DIN connector for the Tableau TP2 power supply, and one bayonet connector for the Tableau TP5 power supply
Switches
DIP Switch The 4-position DIP switch configures user-selectable options that are not required for normal operation. See the T8u Quick Reference Guide for more information
User Interface
LCD 2 Row x 16 Column monochrome LCD character display with LED backlight
Buttons Three buttons: "Menu" and "Enter" buttons for navigation, plus an "On/Off" button to control the power
Other Features
Status LEDs Six LEDs: DC IN, Power, Host (detect), Device (detect), Wrt Block (enabled), Activity
Compatibility
USB Device USB 3.0 and older devices that conform to the USB Mass Storage class specification and support the Bulk Only Interface Protocol
Host OS Microsoft Windows version 7, 8, 10
Macintosh OS X
Most modern Linux distributions (Note: Linux distributions have varying levels and quality of support for USB 3.0)
Physical / Environmental
Power 12 watts typical operating (not including USB device)
Supply Voltage (DC IN) +5V @ 1.2A (max), +12V @ 0.6A (max) when powered using TP2 connector
+12V @ 1.2A (max) when using a Tableau TP5 power supply
Output Voltage (DC OUT) +5VDC @ 0.9A (max)
Dimensions 5.625 in. (L) x 3.25 in. (W) x 1.125 in. (H)
Weight 7.2oz (204g)
Operating Temperature Range 0 to 55 degrees C (no airflow)
Storage Temperature Range -20 to 60 degrees C
Relative Humidity Up to 90% (non-condensing)
Warranty
One year parts and workmanship from date of purchase
